Network & Server Racks
Network & Server Rack Cabinets
19-inch floor-standing and wall-mount cabinets for network rooms, server rooms, edge sites and CCTV head-ends. Steel construction, tempered-glass front doors, lockable side panels and a full accessory programme — fan trays, PDUs, shelves and vertical cable management — supplied under the Antek Labs brand across MEA & APAC.
NETWORK · SERVER · AISLE · OUTDOOR CABINETS // 6U–47U // IEC 60297 · EIA-310
Cabinet Series

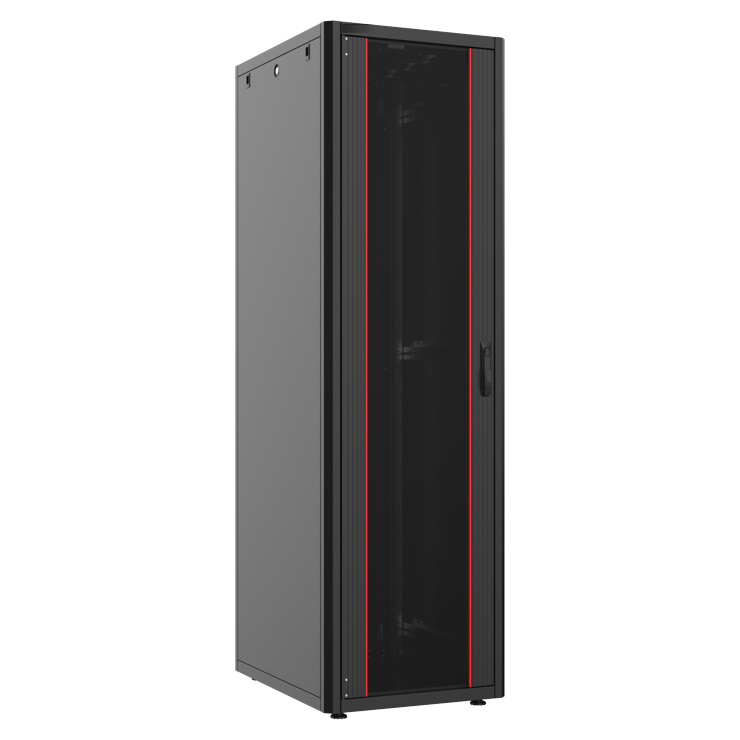

Floor-Standing Network Cabinets
18U, 27U and 42U · widths 600 / 800 mm · depths 600 / 800 / 1000 mm. Static load 600 kg. Glass front door, solid steel rear door, both opening 130°.

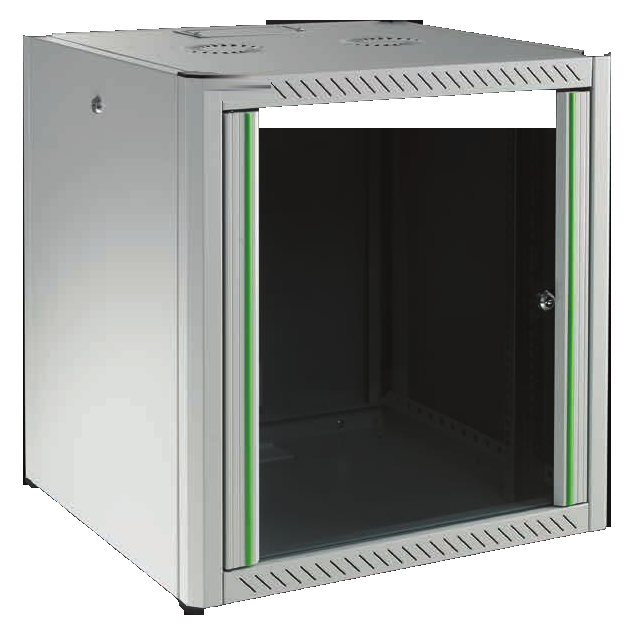

Wall-Mount Network Cabinets
6U, 9U, 15U and 18U · 600 mm wide · depths 450 / 600 mm. Static load 80 kg. Single-section, or double-section (swing-frame) with a rear body module on 9U and 18U for rear access on the wall.

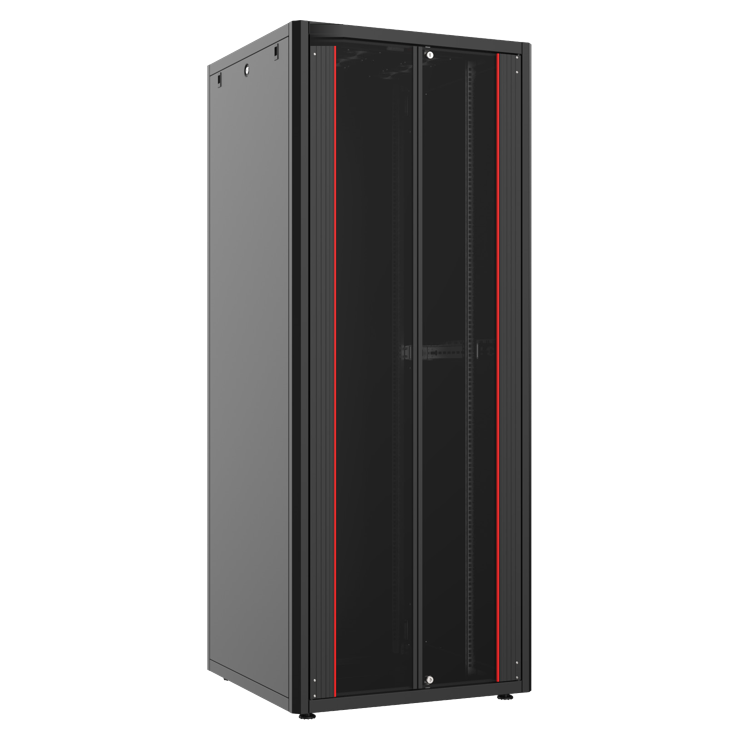

Heavy-Duty Server & Aisle Cabinets
42U and 47U · 800 mm wide · 1000 / 1200 mm deep (plus 42U 600 × 800). High-load 19-inch rails, perforated doors, hot / cold aisle containment-compatible. Datacenter Solutions →
Outdoor Field Enclosures
IP-rated steel enclosures for telecom, CCTV and roadside equipment — wall, floor or pole mounted, IP54 to IP66 options. Configured per project with fans, heaters and DIN-rail / 19-inch internals.
Construction & Standard Fit-Out
Doors & Locking
Front: full-height 4 mm tempered smoke-glass door in a steel frame, handle lock, spring-loaded hinges — removable and reversible without tools. Rear: solid steel door with barrel lock, lift-off for maintenance. Side panels: removable, lockable. Wall-mount cabinets use a bracket-type rear panel that fixes to the wall first, so the cabinet hooks on after the equipment is installed at floor level.
Frame & Load
Floor-standing: 600 kg static load, levelling feet and braked castors (rated 600 kg each) supplied. 800 mm-wide models add side brackets and corner supports for high-density patching. Wall-mount: clinched profile carcass, 80 kg load, PVC corner feet allow floor or under-desk use.
Cable Entry & Airflow
Floor-standing: plastic top entry plus a bottom sliding entry panel with rubber edge (opening up to 300 × 200 mm). Wall-mount: 145 × 70 mm rubber-edged entries top, bottom and rear. Vented roof accepts thermostat-controlled fan modules; passive ventilation without fans.
Rails, Finish & Packing
19-inch rails depth-adjustable, U-numbered. Powder-coated steel in Black (RAL 9005) or Light Grey (RAL 7035). Floor-standing cabinets ship flat-packed for freight efficiency and assemble with basic tools; wall-mount cabinets ship assembled. Designed to IEC 60297-1/-2 (19-inch mounting), EN 61587-1; CE and RoHS.
Floor-Standing Network Cabinets
| # | Height | W (mm) | D (mm) | H (mm) | Part Number | Configuration |
|---|---|---|---|---|---|---|
| 1 | 42U | 800 | 800 | 2053 | AL-61407-B / AL-61407-G | Floor Standing |
| 2 | 42U | 800 | 1000 | 2053 | AL-61283-B / AL-61283-G | Floor Standing |
| 3 | 27U | 600 | 800 | 1342 | AL-61519-B / AL-61519-G | Floor Standing |
| 4 | 27U | 800 | 800 | 1342 | AL-61162-B / AL-61162-G | Floor Standing |
| 5 | 27U | 800 | 1000 | 1342 | AL-61738-B / AL-61738-G | Floor Standing |
| 6 | 18U | 600 | 600 | 897 | AL-61344-B / AL-61344-G | Floor Standing |
| 7 | 18U | 600 | 800 | 897 | AL-61091-B / AL-61091-G | Floor Standing |
| 8 | 18U | 600 | 1000 | 897 | AL-61625-B / AL-61625-G | Floor Standing |
-B = Black RAL 9005 · -G = Light Grey RAL 7035. Other heights and door variants (perforated, doorless, double) available to order.
Heavy-Duty Server & Hot / Cold Aisle Cabinets
| # | Height | W (mm) | D (mm) | Part Number | Type |
|---|---|---|---|---|---|
| 1 | 42U | 800 | 1200 | AL-65218-B / AL-65218-G | Hot / cold aisle cabinet |
| 2 | 42U | 600 | 800 | AL-65743-B / AL-65743-G | Hot / cold aisle cabinet |
| 3 | 47U | 800 | 1000 | AL-65391-B / AL-65391-G | Hot / cold aisle cabinet |
| 4 | 47U | 800 | 1200 | AL-65066-B / AL-65066-G | Hot / cold aisle cabinet |
| 5 | 42U | 800 | 1000 | AL-65527-B / AL-65527-G | Containment-compatible cabinet |
Server-grade cabinets with high-load 19-inch rails and perforated front / rear doors for front-to-back airflow. Aisle cabinets are supplied with the matching containment (doors, roof, blanking) as a project-engineered system — see Datacenter Solutions.
Wall-Mount Cabinets
| # | Height | W (mm) | D (mm) | H (mm) | Part Number | Configuration |
|---|---|---|---|---|---|---|
| 1 | 6U | 600 | 450 | 423 | AL-62317-B / AL-62317-G | Single-section |
| 2 | 6U | 600 | 600 | 423 | AL-62148-B / AL-62148-G | Single-section |
| 3 | 9U | 600 | 450 | 512 | AL-62573-B / AL-62573-G | Single or double-section |
| 4 | 9U | 600 | 600 | 512 | AL-62206-B / AL-62206-G | Single or double-section |
| 5 | 15U | 600 | 600 | 823 | AL-62791-B / AL-62791-G | Single-section |
| 6 | 18U | 600 | 600 | — | AL-62434-B / AL-62434-G | Single or double-section |
| 7 | 9U | 600 | 150 | 498 | AL-62660-B / AL-62660-G | Rear body module — makes the 9U cabinet double-section |
| 8 | 18U | 600 | 150 | 809 | AL-62029-B / AL-62029-G | Rear body module — makes the 18U cabinet double-section |
Double-section = cabinet body swings open from a wall-fixed rear module for full rear access without demounting. Order the cabinet plus the matching rear module.

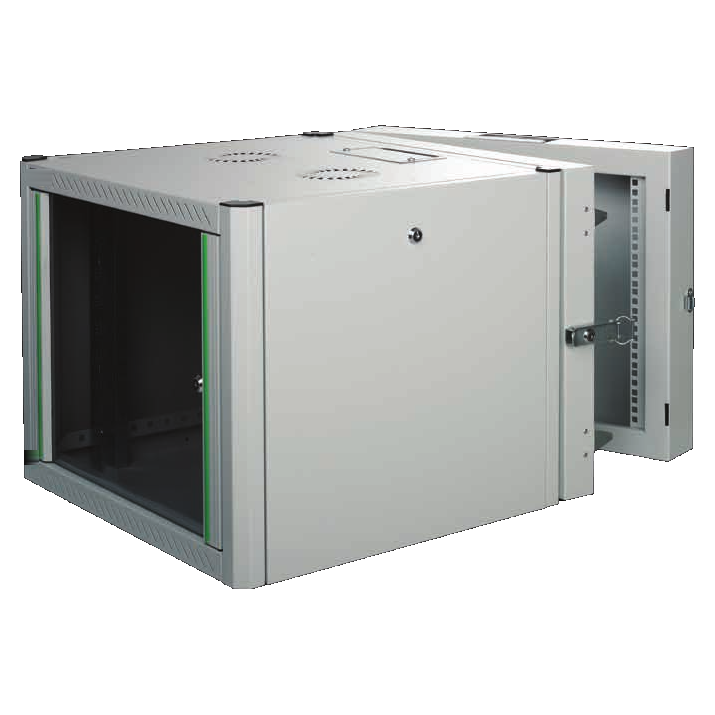

Double-section wall cabinet — body swung open on the wall-fixed rear module
Accessories
| # | Part Number | Description | Size (mm) |
|---|---|---|---|
| 1 | AL-63512 | Rack PDU, 1U, 6 × BS 1363 (UK) sockets, 13 A, illuminated on/off switch, BS 1363 plug | 1U |
| 2 | AL-63247 | Fixed shelf, depth-adjustable, for 800 mm deep cabinets | 431 × 800 × 25 |
| 3 | AL-63805 | Fixed shelf, depth-adjustable, for 1000 mm deep cabinets | 431 × 1000 × 25 |
| 4 | AL-63641 | Fixed shelf, depth-adjustable, for 1200 mm deep cabinets | on request |
| 5 | AL-63028 | Sliding shelf, for 800 mm deep cabinets | on request |
| 6 | AL-63397 | Sliding shelf, for 1000 mm deep cabinets | on request |
| 7 | AL-63864 | Sliding shelf, for 1200 mm deep cabinets | on request |
| 8 | AL-63174 | Fan module, 1 fan, thermostat-controlled — wall-mount cabinets | 490 × 135 × 45 |
| 9 | AL-63691 | Fan module, 2 fans, thermostat-controlled — wall-mount cabinets | 490 × 135 × 45 |
| 10 | AL-63463 | Fan tray, 4 fans, thermostat-controlled — floor-standing cabinets | 490 × 270 × 45 |
| 11 | AL-64703 | Vertical cable organiser, 12U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 618 |
| 12 | AL-64138 | Vertical cable organiser, 16U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 796 |
| 13 | AL-64491 | Vertical cable organiser, 20U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 974 |
| 14 | AL-64957 | Vertical cable organiser, 22U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 1063 |
| 15 | AL-64226 | Vertical cable organiser, 26U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 1241 |
| 16 | AL-64619 | Vertical cable organiser, 32U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 1508 |
| 17 | AL-64374 | Vertical cable organiser, 36U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 1686 |
| 18 | AL-64842 | Vertical cable organiser, 40U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 1863 |
| 19 | AL-64065 | Vertical cable organiser, 42U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 1952 |
| 20 | AL-64530 | Vertical cable organiser, 46U, full height, 1.2 mm steel, set of 2 (left / right) | 92 × 92 × 2130 |
Fan modules and shelves are finished to match the cabinet colour. Blanking panels, horizontal cable managers and cage-nut kits on request. Specifications subject to change without notice.
Supply Model
Made to Order, No Minimum
Single cabinets or container loads. Standard cabinets are produced in approximately three weeks ex-works; sea or air transit quoted per destination.
Configured Before Dispatch
Door type, colour, fan tray, PDU, shelves and cable managers are specified on the order and fitted or kitted before shipment — one line item per rack.
Channel Only
Sold through system integrators, ELV contractors and distributors. Partner pricing and project registration available. Partner program →
Pair With
Rack Environmental Monitoring
Per-rack temperature, humidity, door and leak sensors with centralised alerting. Datacenter Solutions →
Switching & Fiber
Managed switches, media converters and SFP/SFP+ modules for the same BOQ. All products →
Build Your Rack BOQ
Send the U-height, width, depth, colour and accessories per rack — a detailed quotation is returned within 24 hours.
